API 7K IBOP Valve NC50 Non-return Valve Back Pressure Valve For Drill String

The IBOP is a non-return valve (check valve), also called Gray Valve or BVR, is a back pressure valve used in the drill string to prevent the well from flowing uncontrollably up the drill string. It is used to hold the tool open therefore it is possible to stab the valve while the fluid is flowing through the drill pipe. With the IBOP valve installed in the drill string, it allows you to strip in hole without mud flowing through the drill sting. The IBOP valve should not be used for shut the well in while tripping.We produce H2S resistance Inside Bop Valves, which adopt high quality import sulfur-resistance material.

Available with a wide variety of sizes and end connections.
Two piece body with full drift bores.
Operating wrench and thread protectors included.
Major repair kits available for every valve.
Comes with certified test report.
Identifiable open and close markings.
Can be H2S corrosion resistant as per NACE MR0175.

IBOP Valve NC50

Non-return IBOP Valve

Back Pressure Valve For Drill String

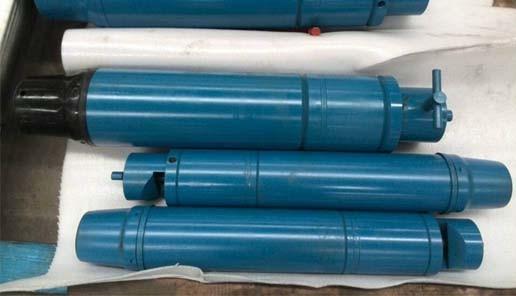

API 7K IBOP Valve NC50 Non-return Valve Back Pressure Valve For Drill String Images
